Optional straight lengths of 1200 – 2400 – 3000 mm available
Optional plug-in outlets every 300mm or 600mm
IP55 degree of Protection
Halogen Free plastics with a fire rating of up to 960°C

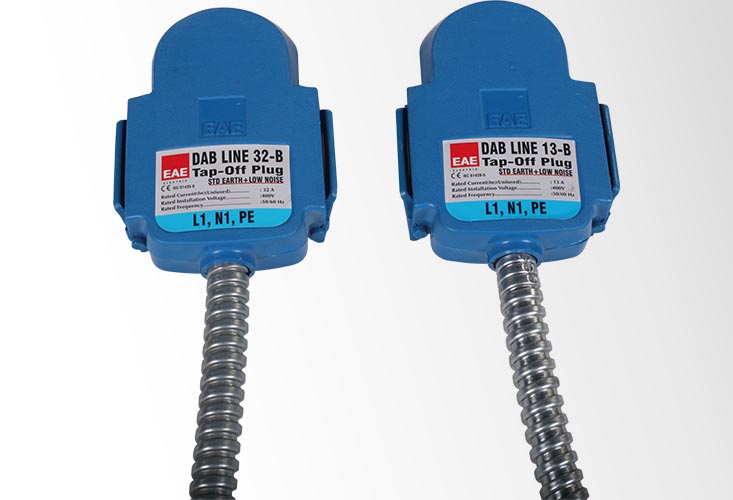

Keyed Tap-off Plugs
The spring contacts of the busbar are silver plated
On the conductor, full length isolation that provides long life security and protects property against danger emanating from the outside
Grounding continuity and installation at the joint points are provided by using a single bolt
Each busbar length is complete with integrated floor fixing brackets
IP covers hinged on plug-in windows
2, 3, 4, 5 conductor options (grounding optional)
Single Phase (for UPS and mains) 2 separate circuit possibilities for 2 separate busbars or for the same plug (mains, UPS)
Current reception units are available in various colours for the mains and UPS
Usage Areas
Banks
Business Centres
New Generation Offices
Hotels
Hospitals
Cinemas and theatres
Conference Centres
Educational Building
Tourist Facilities
Raised floor application

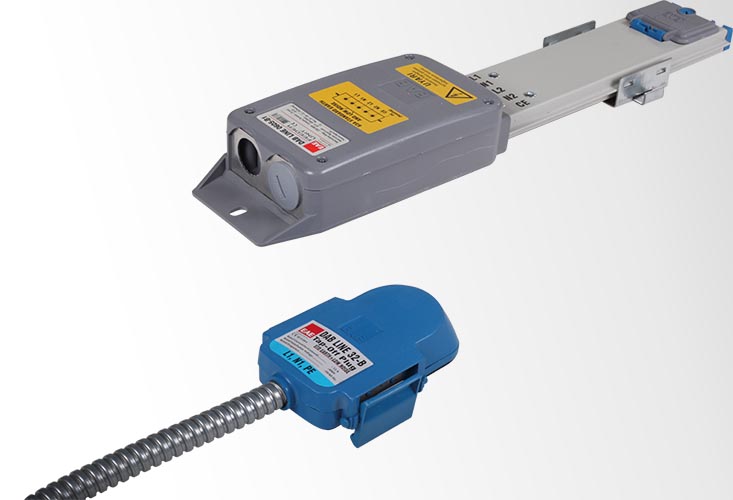

Dabline Busbar
Underfloor Busbar Trunking Power Distribution Systems (63A-80A)
Dabline underfloor busbar systems, which has various colour options, is used in raised floor applications in offices. The smaller size of DABLINE (Underfloor busbar) makes it possible to install the system into restricted areas with a floor height up to 65mm.
