E-Line MK Busbar

Busbar System - Flexibility

The small power range Busbar Systems of E-Line MK series provide flexible and cost-effective solutions for the transmission and distribution of electricity in small-sized enterprises , workshops and industrial facilities.

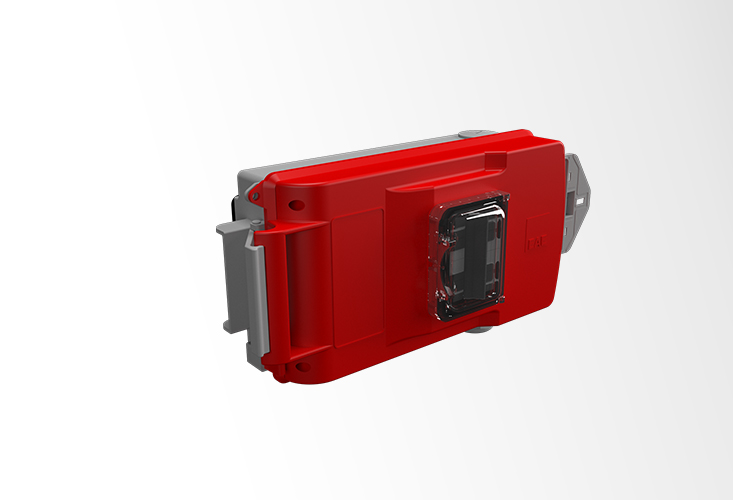

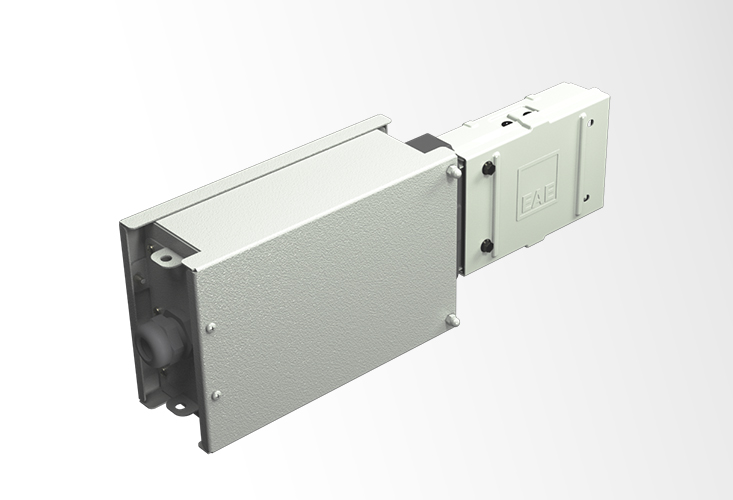

The MK Busbar range offers cost effective solutions to the requirement for different amounts of energy through the range of plastic tap-off boxes. They are designed to provide energy up to 250A.

Catalogs
Catalog 183

General Features

Advantages of MK Busbar

  • IP55 protection class
  • Aluminum or copper conductor options
  • Conductors are fully tin plated
  • 4, 4.5 or 5 conductors

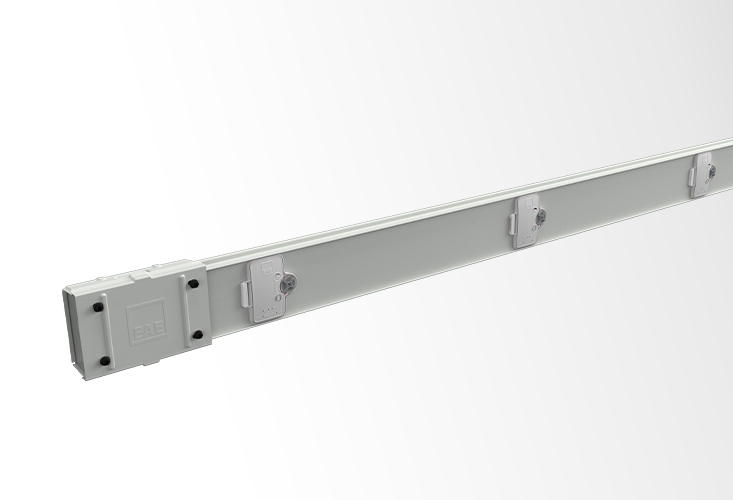

  • Plug-in tap off outlets at every 60 cm on both sides as standard
  • Clean Earth option
  • RAL 7038 painted steel enclosure
  • E-Line Optional conductor can be configured in the E-Line MK Busbar system.

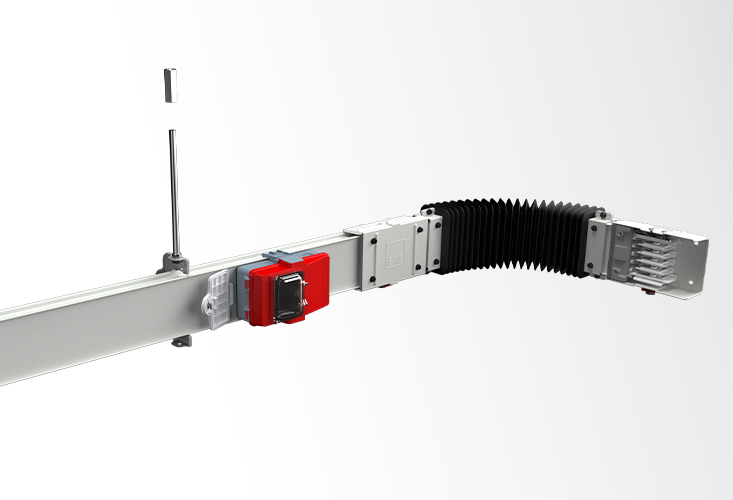

  • Vertical, horizontal elbow and expansion modules are offered in a single module. Horizontal or vertical elbows at the desired angles can be carried out easily. In addition, it can be used safely in building dilatations thanks to its flexibility in every direction.
  • The possibility of current supply from a total of 10 points on both sides of the busbar system is offered as a standard.
  • Safety is ensured so not to allow finger contact when the busbar IP covers are open or the tap off boxes are in the off position and the covers are open (IP class of the system is 2X).

Applications E-Line MK Busbar

  • Small enterprises
  • Local production areas in factories
  • Workshops
  • Textile facilities
  • Automotive facilities
  • Automotive sub-industries
  • Small industrial facilities
  • Malls
  • Data Centres
  • Large Markets
